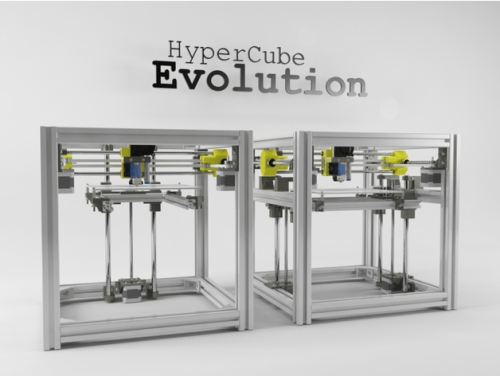

Hypercube Evolution

https://www.thingiverse.com/thing:2254103
Hypercube Evolution Configuration v1.4を使用

https://hevo.wiki/index.php/Incremental_Build_Instructions 購入先が記載されている。

My HyperCube Evolution by DaHai8 - Thingiverse

フレーム検索
https://www.aliexpress.com/wholesale?catId=0&initiative_id=SB_20190227193250&SearchText=3d+printer+hypercube

Compornent Explorerで購入したパーツの条件に揃えた。
Hypercube Evolution Configurator 1.4 設定値

オプションの指定（その他規定値）
Min, Build Volume /Travel X=300,Y=300,Z=300mm
Shafts Xaxis Diam 8, Yaxis Diam 10, Zaxis Diam 12
Z Axis Double
Mk2A 300×00 Bed Bracket 25

あと、TMC2208を購入する必要があるはずだけど、基板がMKS Baseだったかもしれない。
その場合はMKS Genが必要になる。
TMC2208 3D Printer

PEIシート購入済み。再度ここを確認する。
3DプリンタープリントベッドシーツとしてのPEIシート - ガイド| All3DP

Excel計算で算出した必要な部品一覧

BOM - Extrusions and linear guides

Item		Length	Unit	Qty	Note
3030 Extrusion		420	mm	4	Frame X extrusion
		410	mm	6	Frame Y extrusion
		500	mm	4	Frame Z extrusion
2020 Extrusion		415	mm	2	Bed frame X extrusion
		235	mm	2	Bed frame Y extrusion
Diam 8	Shaft	450	mm	2	X axis linear guide
Diam 10	Shaft	410	mm	2	Y axis linear guide
Diam 12	Shaft	400	mm	4	Z axis linear guide

Hypercube Evolution Printed part quantities	All versions	X Axis Versions	Y Axis Versions	Z Axis Versions
Printed Part Name		Diam 8	Diam 10	Double

X-Carriage	1
Belt_Clamp	2
Belt_Tensioner	4
Duct	1
Extruder_Mount	1
Retainer	1
T_Slot_Cover	As needed
X_End_Stop_Flag	2

XY_Idler_Mount_Left			1
XY_Idler_Mount_Left_yDia8
XY_Idler_Mount_Right			1
XY_Idler_Mount_Right_yDia8
XY_Stepper_Mount Left			1
XY_Stepper_Mount Left_yDia8
XY_Stepper_Mount Right			1
XY_Stepper_Mount Right_yDia8

Y_Carriage_Clamp_LM8UU
Y_Carriage_Clamp_LM10UU			2

Y_Carriage_xDia8_LM8UU
Y_Carriage_xDia8_LM10UU		2
Y_Carriage_xDia10_LM8UU
Y_Carriage_xDia10_LM10UU

Y_End_Stop_Bracket	2
Y_End_Stop_Flag	1

Z_Axis_Bearing_Holder				4
Z_Axis_Linear_Rail_Bracket_-_Left				2
Z_Axis_Linear_Rail_Bracket_-_Right				2
Z_Axis_Linear_Rail_Bracket_-_Double_Z_-_Left				2
Z_Axis_Linear_Rail_Bracket_-_Double_Z_-_Right				2

Z_Motor_Mount				2
Z_Nut_Braket				2

ここからあるものを削除していく。

最終的なリスト

BOM for HyperCube Evolution Black 300300300 Edited
Description	Quantity	Price($) ^ Total($)	Note	Original Qty
420mm 3030 Black Al profiles	4	2.2	8.8
410mm 3030 Black Al profiles	6	2.1	12.6
500mm 3030 Black Al profiles	4	2.5	10
415mm 2020 Black Al profiles	2	1.2	2.4
235mm 2020 Black Al profiles	2	1	2
Dia 8mm linear rods 450mm	2	2.1	4.2
Dia 10mm linear rods 410mm	2	2.3	4.6
Dia 12mm linear rods 400mm	4	2.5	10
LM8UU linear bearings	0	0.9	0	https://www.aliexpress.com/item/32853909929.html?spm=2114.12010615.8148356.7.20df4700ZB32Z5	4
LM10UU linear bearings	0	1	0	https://www.aliexpress.com/item/32856898236.html?spm=a2g0o.productlist.0.0.5c8e4aa5Tsw2gn&algo_pvid=59640c3e-1d98-4ca8-b2b6-fa60ead70a16&algo_expid=59640c3e-1d98-4ca8-b2b6-fa60ead70a16-19&btsid=c8cd0b13-f05a-4f54-8e20-5044eb97505b&ws_ab_test=searchweb0_0,searchweb201602_4,searchweb201603_52	4
LM10LUU linear bearings	0	1.5	0	https://www.aliexpress.com/item/32858761675.html?spm=2114.12010615.8148356.1.2bb81edcaECV0c	2
LM12UU linear bearings	0	1	0	https://www.aliexpress.com/item/32858115295.html?spm=a2g0o.productlist.0.0.240f347bLYn4Rs&algo_pvid=4fbcd93a-90e1-4a23-adf2-070303358367&algo_expid=4fbcd93a-90e1-4a23-adf2-070303358367-9&btsid=f6134290-11c5-4a80-bb08-d08c677dbb11&ws_ab_test=searchweb0_0,searchweb201602_4,searchweb201603_52	8
L type bracket for 3030 extrusion	30	0.4	12
L type bracket for 2020 extrusion	20	0.3	6
Black 3030 corner brackets	20	0.3	6
100 pcs Black M5*10 Button Head Socket Bolts	1	3	3
Black M6*10 Button Head Socket Bolts with 30-M6 Hummer nuts	20	0.05	1
Black M3 Socket head screws	1	5	5
100pcs M5 T Hammer Nuts for 3030 extrusion	1	5	5
100pcs M5 T Hammer Nuts for 2020 extrusion	0	4.5	0	在庫確認	3
3mm dowel pins	10	0.2	2
100pcs M3 5×5 Brass knurled insert	1	5	5
10cps 3030 end Caps	1	2	2
D50 8*50 Levelling feet	4	1	4
Nema17 350mm Tr8*8 leadscrew linaer steppper with Anti-backlash nuts	2	30	60
NEMA 17 40mm Stepper Motors	0	6.5	0	在庫確認	3
GT2 Timing Pulley (20 teeth) 5mm bore for 6mm belt	2	1.75	3.5
GT2 Idler Pulley (20 teeth) 3mm bore	6	2	12
GT2 Idler Pulley without teeth (20 teeth) 3mm bore	2	2	4
5m Polyurethane GT2 6mm belt	0	6	0
MK2A Heated Bed 300×3003mm with Glass 300300*3mm	0	35	0
6pcs Levelling screws	0	2	0		1
Insulation Pad 3003000.5mm	0	5	0		1
100kohm NTC3950 thermistor	0	0.8	0		1
24V 500W power supply	0	24	0	https://www.aliexpress.com/item/32908478289.html?spm=a2g0o.productlist.0.0.4d5f40f8MlValA&algo_pvid=95a0620a-902a-4497-a425-472abbad1f5e&algo_expid=95a0620a-902a-4497-a425-472abbad1f5e-0&btsid=919b4e4d-8c3b-4872-a3f6-7fa9a5fff6f1&ws_ab_test=searchweb0_0,searchweb201602_4,searchweb201603_52	1
RAMPS 1.4 with stepper drivers and display	0	20	0		1
RAMPS 1.4 fan extender module	0	6.5	0		1
DC-DC 24V-12V step down module	0	1.5	0		1
Arduino MEGA 2560	0	7	0		1
Power expansion module	0	1	0		1
5V NPN M12 inductive sensor	0	3	0		1
Optical end stops	4	1.6	6.4
AC rocker switch power inlet socket w/ fuse	0	1	0		1
5m x 24AWG 4 core UL2464 cable	0	6.6	0		1
5m x 24AWG 2 core UL2464 cable	0	4	0		1
2m x 14AWG Silicone cable	0	3	0		1
5m x 24AWG 3core UL2464 cable	0	5	0		1
Titain Extruder with motor+E3D V6 hotend with Nozzels	0	30	0
8pcs Metric Wrenches	0	2	0		1
110V/220V 40W Welding Kits	0	10	0		1
10pcs Black and 10pcs Red Y Type Termimals	0	2	0		1

Total			191.5

海外の

国内の（ヤマト）

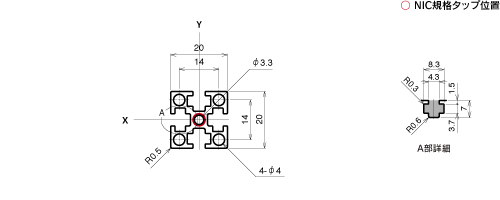

国内の（NIC Direct)

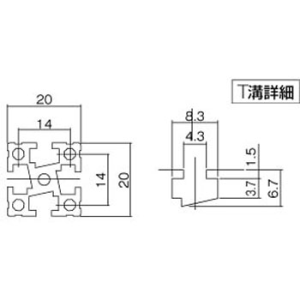

→国内だとミスミ（個人取引不可）か、エスユウエスしかユーロピアンプロファイルを取り扱っていない。
エスユウエスはモノタロウでも買えるが、長さ指定ができない。
WEB SUS 専用ソフトを使って計算すれば3％引きだそう

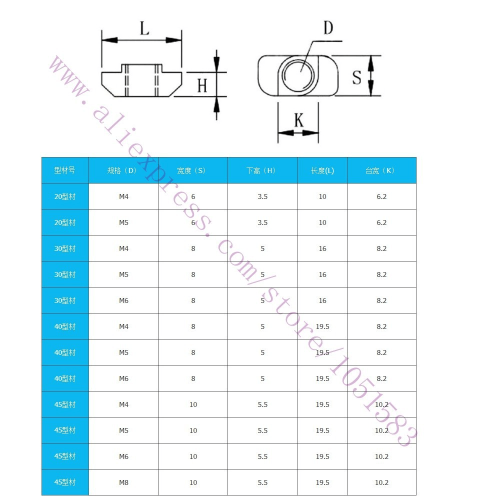

アルミフレーム用のストッパの仕様（ユーロピアンプロファイル用）
Aliexpress.com : Buy 60pcs/lot 2020 aluminum profiles T Slot nuts m3, m4 or m5 Hamer head nuts for 3D Printer from Reliable for 3d printer suppliers on REPRAP Official Store

BOM for HyperCube Evolution Dual Z Axises Black 300*300*300

下図の部品表のうち、数量が0のものはすでに在庫があるか、別途手配するもの。
別途手配するものはNoteにURLをつけた。
hypercubeevolution_edit_ht.xls
— root 2019/08/08 14:11

部品表

トータル：191.5 USD

Description	Quantity	Price($) ^ Total($)	Note	Original Qty
420mm 3030 Black Al profiles	4	2.2	8.8
410mm 3030 Black Al profiles	6	2.1	12.6
500mm 3030 Black Al profiles	4	2.5	10
415mm 2020 Black Al profiles	2	1.2	2.4
235mm 2020 Black Al profiles	2	1	2
Dia 8mm linear rods 450mm	2	2.1	4.2
Dia 10mm linear rods 410mm	2	2.3	4.6
Dia 12mm linear rods 400mm	4	2.5	10
LM8UU linear bearings	0	0.9	0	https://www.aliexpress.com/item/32853909929.html?spm=2114.12010615.8148356.7.20df4700ZB32Z5	4
LM10UU linear bearings	0	1	0	https://www.aliexpress.com/item/32856898236.html?spm=a2g0o.productlist.0.0.5c8e4aa5Tsw2gn&algo_pvid=59640c3e-1d98-4ca8-b2b6-fa60ead70a16&algo_expid=59640c3e-1d98-4ca8-b2b6-fa60ead70a16-19&btsid=c8cd0b13-f05a-4f54-8e20-5044eb97505b&ws_ab_test=searchweb0_0,searchweb201602_4,searchweb201603_52	4
LM10LUU linear bearings	0	1.5	0	https://www.aliexpress.com/item/32858761675.html?spm=2114.12010615.8148356.1.2bb81edcaECV0c	2
LM12UU linear bearings	0	1	0	https://www.aliexpress.com/item/32858115295.html?spm=a2g0o.productlist.0.0.240f347bLYn4Rs&algo_pvid=4fbcd93a-90e1-4a23-adf2-070303358367&algo_expid=4fbcd93a-90e1-4a23-adf2-070303358367-9&btsid=f6134290-11c5-4a80-bb08-d08c677dbb11&ws_ab_test=searchweb0_0,searchweb201602_4,searchweb201603_52	8
L type bracket for 3030 extrusion	30	0.4	12
L type bracket for 2020 extrusion	20	0.3	6
Black 3030 corner brackets	20	0.3	6
100 pcs Black M5*10 Button Head Socket Bolts	1	3	3
Black M6*10 Button Head Socket Bolts with 30-M6 Hummer nuts	20	0.05	1
Black M3 Socket head screws	1	5	5
100pcs M5 T Hammer Nuts for 3030 extrusion	1	5	5
100pcs M5 T Hammer Nuts for 2020 extrusion	0	4.5	0	在庫確認	3
3mm dowel pins	10	0.2	2
100pcs M3 5×5 Brass knurled insert	1	5	5
10cps 3030 end Caps	1	2	2
D50 8*50 Levelling feet	4	1	4
Nema17 350mm Tr8*8 leadscrew linaer steppper with Anti-backlash nuts	2	30	60
NEMA 17 40mm Stepper Motors	0	6.5	0	在庫確認	4
GT2 Timing Pulley (20 teeth) 5mm bore for 6mm belt	2	1.75	3.5
GT2 Idler Pulley (20 teeth) 3mm bore	6	2	12
GT2 Idler Pulley without teeth (20 teeth) 3mm bore	2	2	4
5m Polyurethane GT2 6mm belt	0	6	0
MK2A Heated Bed 300×3003mm with Glass 300300*3mm	0	35	0
6pcs Levelling screws	0	2	0		1
Insulation Pad 3003000.5mm	0	5	0		1
100kohm NTC3950 thermistor	0	0.8	0		1
24V 500W power supply	0	24	0	https://www.aliexpress.com/item/32908478289.html?spm=a2g0o.productlist.0.0.4d5f40f8MlValA&algo_pvid=95a0620a-902a-4497-a425-472abbad1f5e&algo_expid=95a0620a-902a-4497-a425-472abbad1f5e-0&btsid=919b4e4d-8c3b-4872-a3f6-7fa9a5fff6f1&ws_ab_test=searchweb0_0,searchweb201602_4,searchweb201603_52	1
RAMPS 1.4 with stepper drivers and display	0	20	0		1
RAMPS 1.4 fan extender module	0	6.5	0		1
DC-DC 24V-12V step down module	0	1.5	0		1
Arduino MEGA 2560	0	7	0		1
Power expansion module	0	1	0		1
5V NPN M12 inductive sensor	0	3	0		1
Optical end stops	4	1.6	6.4
AC rocker switch power inlet socket w/ fuse	0	1	0		1
5m x 24AWG 4 core UL2464 cable	0	6.6	0		1
5m x 24AWG 2 core UL2464 cable	0	4	0		1
2m x 14AWG Silicone cable	0	3	0		1
5m x 24AWG 3core UL2464 cable	0	5	0		1
Titain Extruder with motor+E3D V6 hotend with Nozzels	0	30	0
8pcs Metric Wrenches	0	2	0		1
110V/220V 40W Welding Kits	0	10	0		1
10pcs Black and 10pcs Red Y Type Termimals	0	2	0		1

-

標準仕様のhypercube evolutionより、印刷パーツを変更した。

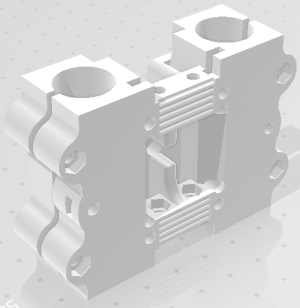

X軸のLM8UUが簡単に抜けるので、ネジ締結式に変更。

x_carriage_hcevo_v2.1c_lm8luu.zip

Z軸のブレ防止
Hypercube Evolution Lead Screw Bracket 8mm with 608ZZ bearing by chanders - Thingiverse

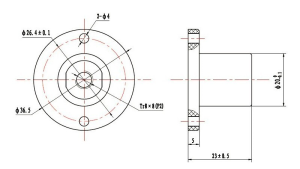

Z軸のバックラッシュナットはこれが届いた。→Z軸の押さえは自作すること。

T8 eliminate clearance nut anti backlash nut POM nut trapezoidal screw nut lead 1mm 2mm 4mm 8mm 10mm 12mm 14mm-in 3D Printer Parts & Accessories from Computer & Office on AliExpress - 11.11_Double 11_Singles' Day

先人が作った参考部品表（未使用）

Category	Item	Qty	Price	Total	link
Frame and Guides	3030 Extrusion (z) 500mm	4	$5.00 \| $20.00	https://us.misumi-ec.com/vona2/detail/110302686450/?Inch=0
	3030 Extrusion (Y) 410mm	6	$4.10 \| $24.60	https://us.misumi-ec.com/vona2/detail/110302686450/?Inch=0
	3030 Extrusion (x) 420mm	5	$4.20 \| $21.00	https://us.misumi-ec.com/vona2/detail/110302686450/?Inch=0
	2020 Extrusion (x) 415mm	2	$2.36 \| $4.72	https://us.misumi-ec.com/vona2/detail/110302683830/?Inch=0
	2020 Extrusion (y) 195mm	3	$3.03 \| $9.09	https://us.misumi-ec.com/vona2/detail/110302683830/?Inch=0
	L-Type 3030 Brackets	24	$0.30 \| $7.20	https://www.aliexpress.com/item/T-slot-L-type-90-degree-EU-standard-3030-aluminum-profile-Inside-corner-connector-bracket-with/32772827830.html?spm=2114.13010608.0.0.vwn135
	3030 Corner Brackets 20pcs	1	$3.28 \| $3.28	https://www.aliexpress.com/item/20pcs-lots-3030-corner-fitting-angle-aluminum-35-x-35-L-connector-bracket-fastener-match-use/32733275167.html?spm=2114.13010608.0.0.mTb6EB
	8mm Guide Rods (450mm)	2	$8.00 \| $16.00	https://www.amazon.com/PDTech-diameter-bearing-hardened-251mm-500mm/dp/B06W5H3DSV/ref=pd_sbs_328_4?_encoding=UTF8&pd_rd_i=B06W5H3DSV&pd_rd_r=RG809DHBJP8CZEKH2Z94&pd_rd_w=rlwsP&pd_rd_wg=rP4n9&psc=1&refRID=RG809DHBJP8CZEKH2Z94
	10mm Guide Rods (420mm)	2	$8.00 \| $16.00	https://www.amazon.com/PDTech-diameter-bearing-hardened-251mm-500mm/dp/B06W5H3DSV/ref=pd_sbs_328_4?_encoding=UTF8&pd_rd_i=B06W5H3DSV&pd_rd_r=RG809DHBJP8CZEKH2Z94&pd_rd_w=rlwsP&pd_rd_wg=rP4n9&psc=1&refRID=RG809DHBJP8CZEKH2Z94
	12mm Guide Rods(400mm)	4	$11.50 \| $46.00	https://www.amazon.com/PDTech-diameter-bearing-hardened-251mm-500mm/dp/B06W5H3DSV/ref=pd_sbs_328_4?_encoding=UTF8&pd_rd_i=B06W5H3DSV&pd_rd_r=RG809DHBJP8CZEKH2Z94&pd_rd_w=rlwsP&pd_rd_wg=rP4n9&psc=1&refRID=RG809DHBJP8CZEKH2Z94
Fastners	M5X10 100pc lot	1	$8.75 \| $8.75	https://www.aliexpress.com/item/100pcs-lot-M5-10-Bolt-A2-70-ISO7380-Button-Head-Socket-Screw-Bolt-SUS304-Stainless-Steel/32328885247.html?spm=2114.13010608.0.0.vwn135
	m6 set	1	$4.49 \| $4.49	https://www.aliexpress.com/item/120pcs-m6-8-to-25-ISO7880-Stainless-steel-304-M6-hex-socket-button-head-screw-and/32799855529.html?spm=2114.01010208.3.34.nxcj4Q&ws_ab_test=searchweb0_0,searchweb201602_1_10152_10065_10151_10208_10130_10068_10136_10137_10060_10155_10062_437_10154_5300012_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10142_10107_10050_10051_5030012_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10078_10079_10073_10123_10189_142,searchweb201603_50,ppcSwitch_5&btsid=ad32156c-c9c9-450b-be05-feb3c60ce37f&algo_expid=47ce5386-4b83-4088-bc28-9ff41d0a622b-4&algo_pvid=47ce5386-4b83-4088-bc28-9ff41d0a622b
	M5X12 100pc lost	1	$11.90 \| $11.90	https://www.aliexpress.com/item/100-PCS-M5-12-Button-Socket-Head-Cap-Screw-ISO7380-Stainless-Steel/32420406692.html?spm=2114.13010208.99999999.293.dMJJLY
	M3 Socket Head set	1	$5.24 \| $5.24	https://www.aliexpress.com/item/Hex-Socket-Head-Cap-Screw-M3-Qty-90pcs-in-Box-Assortment-Kits-SUS-304-M3-4/32334431524.html?spm=2114.13010608.0.0.vwn135
	M5 T-Hammer Nuts for 3030 100pcs	1	$3.68 \| $3.68	https://www.aliexpress.com/item/100pcs-30-M5-hammer-nut-M5-block-t-slot-nuts-for-3030-aluminum-profile-extrusion-Slot/32688393400.html?spm=2114.13010608.0.0.vwn135
	M5 T-Hammer Nuts for 2020 100pcs	1	$3.70 \| $3.70	https://www.aliexpress.com/item/M5-T-Nut-Hammer-Nut-Aluminum-Connector-T-Fastener-Sliding-Nut-Nickel-Plated-Carbon-Steel-for/32619352982.html?spm=2114.13010608.0.0.mTb6EB
	3mm Dowel Pins 10pcs	1	$1.90 \| $1.90	https://www.aliexpress.com/item/GB119-304-Stainless-Steel-Cylindrical-Pin-Locating-Pin-M3-12/32789184323.html?spm=2114.13010608.0.0.iDrnoz
	3mmX5X5 Knurled Inserts 100pcs	1	$4.39 \| $4.39	https://www.banggood.com/100pcs-M3x5x5mm-Metric-Threaded-Brass-Knurl-Round-Insert-Nuts-p-1050182.html?rmmds=search	https://www.aliexpress.com/item/200pcs-M3-x-5mm-x-OD-5mm-Injection-Molding-Brass-Knurled-Thread-Inserts-Nuts/32428057127.html?spm=2114.13010208.99999999.277.dMJJLY
	3mm nuts	50	$0.10 \| $5.00	https://www.aliexpress.com/item/M3-1pcs-304-stainless-steel-hex-nuts-3mm-Silvery-hexagon-nut-A2-70-nuts-against-rusting/32688947885.html?spm=2114.01010208.3.2.FjFcTZ&ws_ab_test=searchweb0_0,searchweb201602_1_10152_10065_10151_10208_10130_10068_10136_10137_10060_10155_10062_437_10154_5300012_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10142_10107_10050_10051_5030012_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10078_10079_10073_10123_10189_142,searchweb201603_50,ppcSwitch_5&btsid=abdb15fa-3f54-4963-aaa1-5ca62477784d&algo_expid=da501ab4-68a7-4410-bbd9-872572d27058-0&algo_pvid=da501ab4-68a7-4410-bbd9-872572d27058
	3mm washer lot	1	$2.37 \| $2.37	https://www.aliexpress.com/item/M2-M2-5-M3-M4-M5-M6-304-stainless-steel-flat-washer-thick-washers/32480666523.html?spm=2114.01010208.3.2.eYCUAj&ws_ab_test=searchweb0_0,searchweb201602_1_10152_10065_10151_10208_10130_10068_10136_10137_10060_10155_10062_437_10154_5300012_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10142_10107_10050_10051_5030012_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10078_10079_10073_10123_10189_142,searchweb201603_50,ppcSwitch_5&btsid=15e521d1-e1ba-4d69-b9d7-ebda27dded8b&algo_expid=c1aec06a-0f26-45b1-a280-07162a4c2786-0&algo_pvid=c1aec06a-0f26-45b1-a280-07162a4c2786
Motors	NEMA 17 Lead Screw M8 ~30mm	2	$28.39 \| $56.78	https://www.aliexpress.com/item/New-3D-Printer-NEMA-17-Lead-Screw-300mm-Stepper-Motor-Z-Axis-3D-Printer-KIT-Step/32579962696.html?spm=2114.13010608.0.0.UfVwc7
	NEMA 17 42mm Stepper Motors (3 pcs)	1	$24.40 \| $24.40	https://www.aliexpress.com/item/CE-certification-3pcs-4-lead-Nema17-Stepper-Motor-42-motor-D-shaft-motor-42BYGH-1-7A/32786907415.html?spm=2114.13010608.0.0.vwn135	https://www.aliexpress.com/item/3pcs-CE-certification-1pcs-4-lead-Nema17-Stepper-Motor-42-motor-Nema-17-motor-42BYGH-1/32678690816.html?spm=2114.01010208.3.10.r5xYSA&ws_ab_test=searchweb0_0,searchweb201602_1_10152_10065_10151_10068_10130_10136_10137_10060_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10142_10107_10050_10051_5030012_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10078_10079_10073_10123_10189_142,searchweb201603_16,ppcSwitch_5&btsid=fb78ffe7-5bdc-4f40-8bb4-f28edbf16860&algo_expid=87565ff0-d240-42ff-add7-69db35d2d185-1&algo_pvid=87565ff0-d240-42ff-add7-69db35d2d185
	anti-backlash nut	2	$1.99 \| $3.98	https://www.banggood.com/T8-Anti-Backlash-Spring-Loaded-Nut-For-4mm-Acme-Threaded-Rod-Lead-Screws-3D-Printer-Accessories-p-1140252.html?rmmds=cart	https://www.aliexpress.com/wholesale?catId=0&initiative_id=SB_20170612205908&SearchText=t8+anti+backlash
Pulley and Belts	GT2 Timing Pullley 20t, 5mmbore, 6mm belt	2	$0.61 \| $1.22	https://www.aliexpress.com/item/GT2-Timing-Pulley-20teeth-20-teeth-Alumium-Bore-5mm-fit-for-GT2-belt-Width-6mm/32434506931.html?spm=2114.01010208.3.2.60AXrV&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=8e75f15a-e19c-45b1-8f93-ae4ce050e3d7&algo_expid=1b1c0147-d51a-4e1a-a31e-b3a02e29bf25-0&algo_pvid=1b1c0147-d51a-4e1a-a31e-b3a02e29bf25
	GT2 Idler Pulley 20t 3mm bore (10pcs)	1	$17.99 \| $17.99	https://www.aliexpress.com/item/10Pcs-2GT-16-teeth-20-Teeth-Idle-Pulley-Tensioner-Wheel-Bore-3-4-5mm-with-Bearing/32727114180.html?spm=2114.01010208.3.2.4rODdI&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=cc6bf98d-2a86-471d-85fb-6f3064db3cb4&algo_expid=d94491b4-5271-458f-80e8-27825439515a-0&algo_pvid=d94491b4-5271-458f-80e8-27825439515a
	GT2 Idler Pulley no teeth 3mm bore (10pcs)	1	$17.99 \| $17.99	https://www.aliexpress.com/item/10Pcs-2GT-16-teeth-20-Teeth-Idle-Pulley-Tensioner-Wheel-Bore-3-4-5mm-with-Bearing/32727114180.html?spm=2114.01010208.3.2.4rODdI&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=cc6bf98d-2a86-471d-85fb-6f3064db3cb4&algo_expid=d94491b4-5271-458f-80e8-27825439515a-0&algo_pvid=d94491b4-5271-458f-80e8-27825439515a
	5M gt2 6MM BELT	1	$7.10 \| $7.10	https://www.aliexpress.com/item/Top-Quality-PU-With-Steel-Core-Gt2-Timing-Belt-6mm-Width-5m-A-Pack-Thermoplastic-Polyurethane/32806141650.html?spm=2114.01010208.3.2.6SF949&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=2f2d09d1-2e82-419c-9cd8-50964984b5d3&algo_expid=bc0c2cbc-991e-42d7-bd88-a31b113e0899-0&algo_pvid=bc0c2cbc-991e-42d7-bd88-a31b113e0899
Linear Bearings	LM12UU (10pcs)	1	$9.40 \| $9.40	https://www.aliexpress.com/item/Free-shipping-LM12UU-12mm-Linear-Ball-Bearing-Bushing-Linear-Bearings-CNC-parts-3d-printer-parts-LM12/32227097629.html?spm=2114.01010208.3.10.s93K1t&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=d3612284-f951-42ed-a6f7-48566e0a641a&algo_expid=1ccecd95-1b88-46b0-9734-253b0f143dd2-1&algo_pvid=1ccecd95-1b88-46b0-9734-253b0f143dd2
	LM10UU (10pcs)	1	$8.80 \| $8.80	https://www.aliexpress.com/item/Free-shipping-LM10UU-10mm-Linear-Bushing-CNC-Linear-Bearings/921198237.html?spm=2114.01010208.3.10.Mk0ciP&ws_ab_test=searchweb0_0,searchweb201602_2_10152_10065_10151_10068_10130_10136_10137_10060_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10142_10107_10050_10051_5030013_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10078_10079_10073_10123_10189_142,searchweb201603_13,ppcSwitch_7&btsid=3dcbbd16-f013-4148-a541-cb830f94a090&algo_expid=c2236095-5934-47ab-be47-b98e2bbe049c-1&algo_pvid=c2236095-5934-47ab-be47-b98e2bbe049c	https://www.aliexpress.com/item/4pcs-lot-free-shipping-LM10LUU-10mm-Longer-Linear-Ball-Bearing-Bushing-Linear-Bearings-CNC-parts-3d/32261971788.html?spm=2114.01010208.3.10.r7QqUj&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=cadbef38-3639-469a-9844-266c305309d9&algo_expid=508ab814-17f4-492c-be6f-4c7e1a559de5-1&algo_pvid=508ab814-17f4-492c-be6f-4c7e1a559de5
	LM8UU (2pcs)	2	$1.18 \| $2.36	https://www.aliexpress.com/item/Free-shipping-3D-Printer-Parts-Accessories-Accessory-2Pcs-LM8UU-8mm-8x15x24mm-Linear-Ball-Bearing-Bush-Bushing/32717127901.html?spm=2114.01010208.3.10.c4zSzZ&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_5020013_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_142,searchweb201603_1,ppcSwitch_5&btsid=dd5607c3-0fb1-4606-a807-9eb6226bf006&algo_expid=13d155b4-54dd-4907-bcb3-f9e7c2c69891-4&algo_pvid=13d155b4-54dd-4907-bcb3-f9e7c2c69891
Heated Bed	300×300 Heater Bed	0	$33.99 \| $0.00	https://reprapchampion.com/collections/heated-beds/products/3d-printer-heated-hot-bed-pcb-mk2a-300x300mm-pcb-24v-360watt-large-size-reprap
	Anodized Plate Kit	0	$44.99 \| $0.00	https://gulfcoast-robotics.com/products/anodized-aluminum-heated-bed-build-plate-330x330mm-for-3d-printer-short-kit
	Silicon Pad	0	$69.99 \| $0.00	https://www.amazon.com/approx-KEENOVO-Universal-Flexible-Silicone/dp/B01ERAE0FY/ref=sr_1_2_a_it?s=office-products&ie=UTF8&qid=1497373627&sr=8-2&keywords=keenovo+24v
	Heater Bed +Glass Kit	1	$69.98 \| $69.98	https://reprapchampion.com/collections/heated-beds/products/large-size-300x300mm-heated-bed-with-boro-glass-plate-and-hardware-kit-for-3d-printer
	310×310 Boro Glass				https://gulfcoast-robotics.com/products/large-size-310x310mm-borosilicate-boro-glass-plate-for-3d-printer-heated-bed
	M3 Leveling Screws(5pcs)	2	$1.59 \| $3.18	https://www.aliexpress.com/item/5PCS-3D-printer-Leveling-components-M3-screw-Leveling-spring-Leveling-knob-suite-free-shipping/32782770256.html?spm=2114.01010208.3.2.EK7wyQ&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=792c1787-544d-4b96-b348-fd3fbead9039&algo_expid=9695b816-3630-474a-a042-2ca054de2cfa-0&algo_pvid=9695b816-3630-474a-a042-2ca054de2cfa
	100kohm NTC3950 thermistor	2	$0.85 \| $1.70	https://www.aliexpress.com/item/1pcs-3d-printer-parts-100K-ohm-NTC-3950-Thermistors-with-cable-for-3D-Printer-Reprap-Mend/32489800025.html?spm=2114.13010608.0.0.vwn135
Control System	24V 800W Power Supply	1	$24.90 \| $24.90	https://www.aliexpress.com/item/New-Model-ac-dc-power-supply-24v-33a-800W-psu-ac-dc-converter-220v-110V-AC/32555914201.html?spm=2114.01010208.3.1.QavAjN&ws_ab_test=searchweb0_0,searchweb201602_1_10152_10065_10151_10068_10130_10136_10137_10060_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10142_10107_10050_10051_5030012_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=583191a5-8214-4d14-9727-3fd370e30b2d&algo_expid=aade4653-4a7b-4b8e-90f7-b7f0dab2fe16-0&algo_pvid=aade4653-4a7b-4b8e-90f7-b7f0dab2fe16
	RAMPS 1.4 with stepper drivers and display	0	$19.00 \| $0.00	https://www.aliexpress.com/item/5pcs-A4988-Stepper-Driver-Module-with-Heatsink-1pcs-RAMPS-1-4-Controller-RAMPS1-4-LCD-12864/1869163278.html?spm=2114.13010608.0.0.0rKDs5
	RAMPS 1.4 fan extender module	0	$6.26 \| $0.00	https://www.aliexpress.com/item/Free-shipping-3D-Printer-Reprap-Ramps1-4-RRD-Fan-Extender-Max-20V-Fan-Expansion-Module/1804966614.html?spm=2114.13010608.0.0.rT5D2f
	24V to 12V DC-DC	0	$1.43 \| $0.00	https://www.aliexpress.com/item/DC-DC-24V-18V-to-12V-3A-Step-Down-Module-MINI-Buck-Converter-Power-Supply-Circuit/32778770850.html?spm=2114.13010608.0.0.G2tjiK
	Arduino MEGA 2560	0	$6.99 \| $0.00	https://www.aliexpress.com/item/Mega-2560-CH340G-ATmega2560-16AU-Compatible-for-Arduino-Mega-2560/32517341214.html?spm=2114.13010608.0.0.O0iWmT
	32Bit RAMPS ReARM Processor	0	$45.00 \| $0.00	http://www.panucatt.com/Re_ARM_for_RAMPS_p/ra1768.htm
	High Power Extpansion Module	1	$5.47 \| $5.47	https://www.aliexpress.com/item/3D-Printer-Parts-General-Add-on-Heated-Bed-Power-Expansion-Module-High-Power-Module-expansion-board/32765683570.html?spm=2114.01010208.3.10.p8IUjB&ws_ab_test=searchweb0_0,searchweb201602_1_10152_5010012_10065_10151_10130_10068_10136_10137_10060_10138_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10107_10050_10142_10051_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10185_10078_10079_10073_10123_10189_142,searchweb201603_1,ppcSwitch_5&btsid=fb4c104f-b6fb-4310-84a5-9a197c3f0466&algo_expid=e6feaaec-6e31-4b2f-99fb-251cd579192f-1&algo_pvid=e6feaaec-6e31-4b2f-99fb-251cd579192f
	32Bit SBASE Smoothieboard (from facebook)	1	$75.00 \| $75.00	https://www.aliexpress.com/store/product/3D-Printer-Parts-Smart-Controller-MKS-SBASE-V1-3-Smoothieboard-MKS-TFT32-Controller-Display/1473578_32799378371.html
	5V NPN M12 inductive sensor	1	$2.41 \| $2.41	https://www.aliexpress.com/item/M12-4mm-detection-5VDC-NPN-NO-LJ12A3-4-Z-BX-5V-cylinder-inductive-proximity-sensor-switch/32553311139.html?spm=2114.13010608.0.0.iDrnoz
	Optical End Stops	4	$1.92 \| $7.68	https://www.aliexpress.com/item/2016-Newest-1-x-Optical-Endstop-End-Stop-Limit-Switch-Solution-for-3D-Printer-or-CNC/32656689805.html?spm=2114.01010208.3.9.TjpVYa&ws_ab_test=searchweb0_0,searchweb201602_3_10152_10065_10151_10068_10136_10137_10060_10138_10155_10062_10156_10134_10154_10056_10055_10054_10059_10099_10103_10102_10096_10148_10147_10052_10053_10142_10107_10050_10051_10084_10083_10080_10082_10081_10177_10110_10111_10112_10113_10114_10181_10037_10033_10032_10078_10079_10077_10073_10070_10123_10124,searchweb201603_2,afswitch_1,ppcSwitch_7&btsid=0a677c30-15c5-4511-bd9b-21cec7f98719&algo_expid=9458fd9d-18ca-4360-9463-2e064369527b-4&algo_pvid=9458fd9d-18ca-4360-9463-2e064369527b
Cable	5m x 24AWG 4 core UL2464 cable	1	$4.00 \| $4.00	https://www.aliexpress.com/item/1M-UL-2464-2C-3C-4C-24-AWG-Multi-core-PVC-jacket-cable-Tinned-copper-wire/32781273770.html?spm=2114.13010608.0.0.O0iWmT
	5m x 24AWG Red Black cable	1	$3.32 \| $3.32	https://www.aliexpress.com/item/IEKOV-5-M-Tinned-copper-24AWG-2-pin-Red-Black-cable-300V-PVC-insulated-wire-Electric/32649240375.html?spm=2114.13010608.0.0.O0iWmT
	2m x 14AWG Silicone cable red 1M	2	$1.21 \| $2.42	https://www.aliexpress.com/item/14AWG-Flexible-Silicone-Wire-Cable-Soft-High-Temperature-Tinned-copper-UL-1M/32653995219.html?spm=2114.13010608.0.0.vwn135
	2m x 14AWG Silicone cable black 1M	2	$1.21 \| $2.42	https://www.aliexpress.com/item/14AWG-Flexible-Silicone-Wire-Cable-Soft-High-Temperature-Tinned-copper-UL-1M/32653995219.html?spm=2114.13010608.0.0.vwn135
	5m Servo extension cable	1	$6.15 \| $6.15	https://www.aliexpress.com/item/servo-JR-color-extension-cable-3p-line-futaba-jr-model-aircraft-model-wiring-Wholesale-30-core/32610086634.html?spm=2114.13010608.0.0.vwn135
	stepper motor Connectors (20 sets)	1	$3.33 \| $3.33	https://www.aliexpress.com/item/20-Sets-Micro-JST-2-0-PH-6-Pin-Connector-plug-Male-Female-Crimps/32399923294.html?spm=2114.13010608.0.0.X3vJKL
Hot End Parts	E3d V6 1.75mm	0	$98.00 \| $0.00	http://www.matterhackers.com/store/printer-accessories/e3d-all-metal-v6-hotend-fully-assembled-1.75mm-universal-with-bowden-add-on-24v	https://www.amazon.com/E3D-All-metal-HotEnd-1-75mm-Universal/dp/B00NAK9L6Q/ref=pd_sbs_328_4?_encoding=UTF8&pd_rd_i=B00NAK9L6Q&pd_rd_r=3DPH7BEK92BES6KP60T1&pd_rd_w=8we4u&pd_rd_wg=aUbGC&psc=1&refRID=3DPH7BEK92BES6KP60T1
	Bondetech Extruder	0	$178.00 \| $0.00	https://www.matterhackers.com/store/printer-accessories/bondtech-qr-universal-extruder-1.75mm
	e3d V6 Clone	1	$21.99 \| $21.99	https://reprapchampion.com/collections/hotends/products/v6-hotend-24v-1-75mm-0-4mm-for-bowden-extruder-reprap-3d-printer-kossel-mini
	Titan Extruder	1	$39.90 \| $39.90	https://www.aliexpress.com/item/3D-printer-extruder-Extruder-for-desktop-FDM-3D-printer-reprap-MK8-J-head-bowden-free-shipping/32757902679.html?spm=2114.01010208.3.1.qL5pnC&ws_ab_test=searchweb0_0,searchweb201602_2_10152_10065_10151_10068_10130_10136_10137_10060_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_10102_10096_10052_10053_10142_10107_10050_10051_5030013_10084_10083_10080_10082_10081_10178_10110_519_10111_10112_10113_10114_10182_10078_10079_10073_10123_10189_142,searchweb201603_13,ppcSwitch_7&btsid=aaf6a239-2bdb-4a43-a35c-9f13a539d95a&algo_expid=0c2b28ee-ee46-4d05-9435-9903ee4a6f43-0&algo_pvid=0c2b28ee-ee46-4d05-9435-9903ee4a6f43
	Silicone Socks	1	$3.00 \| $3.00	https://www.matterhackers.com/store/printer-accessories/e3d-silicone-socks-pack-of-3?gclid=CjwKEAjw1PPJBRDq9dGHivbXmhcSJAATZd_Budu6Ie1gXFo5K_8bQNTvAhnZOJH7vp7H8OmkFSlhVBoCs8Pw_wcB
				$0.00
	PTFE tubing	2	$0.84 \| $1.68	https://www.aliexpress.com/item/1M-PTFE-Tube-Teflon-PiPe-to-J-head-hotend-RepRap-Rostock-Bowden-Extruderfor-1-75mm-3mm/32354539306.html?spm=2114.13010208.99999999.267.dMJJLY
	pneumatic fittings	4	$0.91 \| $3.64	https://www.aliexpress.com/item/2pcs-Pneumatic-Fittings-PC4-M6-Bore-4-3mm-For-4mm-PTFE-Tube-connector-Coupler-Feed-inlet/32580461421.html?spm=2114.13010208.99999999.264.dMJJLY
	24V Blower Fan	1	$1.25 \| $1.25	https://www.aliexpress.com/item/1pc-50mm-12V-24V-DC-Cooling-Blower-Fan-5000RPM-Radial-Hot-End-Extruder-For-3D-Printer/32812746917.html?spm=2114.13010208.99999999.285.dMJJLY
				$0.00
	AC Power input with switch	1	$5.99 \| $5.99	https://www.amazon.com/URBEST-Module-Switch-Certification-Socket/dp/B00ME5YAPK/ref=pd_sim_60_5?_encoding=UTF8&pd_rd_i=B00ME5YAPK&pd_rd_r=FC29ETYKN1WYJ0ZENF72&pd_rd_w=H1Ayn&pd_rd_wg=Kioks&psc=1&refRID=FC29ETYKN1WYJ0ZENF72
	Possible Foam Tape for Acrylic		$11.53		http://www.homedepot.com/p/Armacell-2-in-x-30-ft-R-1-Foam-Insulation-Tape-TAP18230/100539553

	Total			$658.74

	custom heater bed				https://www.aliexpress.com/store/product/3d-printer-panel-heated-bed-print-table-customization-round-square-hexagon-build-plate-support-custom-made/1047297_32808521096.html?spm=2114.12010612.0.0.zfV5ZB
	z axis series steppers				http://rigidtalk.com/wiki/index.php?title=Z-Axis_Stepper_Motor_-_Series_Connected_Splitter_Board
	PEI sheeting				http://catalog.cshyde.com/viewitems/categories-3d-printing-materials-3d-printing-films/-surface-40-mil-04-ultem-pei-w-3m-acrylic-adhesive
	Plate				http://store.buymetal.com/aluminum/sheet-plate/6061-t6-t651/aluminum-plate-6061-t6-t651-0.313.html
	tool plate				http://store.buymetal.com/aluminum/sheet-plate/cast-tool-jig-mic6/aluminum-plate-cast-tool-jig-mic-6-0.313.html
	400×300 mat				https://www.aliexpress.com/item/Silicone-heating-pad-heater-24V-400W-300mmx400mm-for-3d-printer-heat-bed-1pcs/32761394463.html?spm=2114.01010208.3.82.Xi20mq&ws_ab_test=searchweb0_0%2Csearchweb201602_2_10152_10065_10151_10130_10068_5210013_5290013_10136_10137_10060_10155_10062_437_10154_10056_10055_10054_10059_303_100031_10099_10103_5320014_10102_10096_5220014_10052_10053_10107_10050_10142_10051_5280012_10084_10083_5250014_10080_10082_10081_10178_10110_519_10111_10112_5240014_10113_5230014_10114_10182_10078_10079_10073_5260013_10123_10189_142_5270014%2Csearchweb201603_16%2CppcSwitch_7&btsid=29da3ebf-85a2-4c28-b267-8a9c86d00901&algo_expid=706eee4f-7900-48e2-8949-dac03d666433-11&algo_pvid=706eee4f-7900-48e2-8949-dac03d666433
	Triangel Labs BMG Clone				https://www.aliexpress.com/store/product/trianglelab-Bowden-Extruder-BMG-extruder-Cloned-Btech-Dual-Drive-Extruder-for-3d-printer-High-performance-for/1654223_32917029058.html?spm=2114.12010615.8148356.2.61a5123c0K8jo6

Board	Manufacturer / Link	Type	Processor	Hardware	Firmware	Drivers Fixed / Exchangable	Number of Drivers	Expandable	Network	Remarks	Notes / Opinion

Duet Wifi / Ethernet	Duet3D.com	32-Bit	Atmel SAM4E8E	Open Source	RepRap Open Source	TMC 2660 Fixed	5, XYZ2 E0 E1	Yes, 2/5 drivers	Wifi / Ethernet	Integrated Webserver	Great community support, lots of features.
Duet Maestro	Duet3D.com	32-Bit	Atmel SAM4S8C	Open Source	RepRap Open Source	TMC 2224 Fixed	5, XYZ E0 E1	Yes, 2 drivers	Ethernet	Integrated Webserver	Great community, same as Duet WiFi / Ethernet
Re-Arm	Panucatt.com	32-Bit	LPC1768 ARM	Open Source	Smoothieware Open Source	Any driver, requires RAMPS shield	5. XYZ2 E0 E1	Yes	With Expansion Board	Replaces Arduino, needs RAMPS Shield	Cheap 32-Bit solution, you can keep your RAMPS if you had one
Azteeg X5 GT / Mini	Panucatt.com	32-Bit	LPC1769 ARM	Open Source	Smoothieware Open Source	Any driver with Polulu Socket	GT 5 / Mini 4 XYZ E0 (E1)	Yes	Ethernet (GT with expansion)		Good Smoothieware boards, flexible drivers.
Radds / Due	RADDS.ORG	32-Bit	Atmel SAM3X8E	Open Source	Repetier Open Source	Any driver with Polulu Socket	6, XYZ2 E0 E1 E2	Yes	No		32-Bit Successor of RAMPS/Arduino great community
Replicape	https://www.thing-printer.com/product/replicape/	32-Bit	AM335x1 from Beaglebone	Open Source	Propr. Firmware, Open Source	TMC 2100 Fixed	5, XYZ2 E0 E1	No Information	Ethernet	Needs Beaglebone Black
Smoothieboard	http://smoothieware.org/smoothieboard	32-Bit	LPC1769 ARM	Open Source	Smoothieware Open Source	A5984 Fixed	5, XYZ E0 E1	No Information	Ethernet	V2 in development	Great community
MKS SBASE	https://www.aliexpress.com/store/1047297	32-Bit	LPC1768 ARM	Closed Source	Smoothieware Open Source	TI 8825 Fixed	5, XYZ E0 E1	No	Ethernet
Lerdge Board	https://www.aliexpress.com/store/product/3DSWAY-3D-Printer-Motherboard-Lerdge-Board-with-Thermistor-ARM-32-bit-Controller-DIY-Kit-with-3/1948493_32763089756.html?spm=2114.12010612.0.0.6a73e34apWoMvz	32-Bit	STM32F4	Closed Source	Propr. Firmware, Closed Source	Several Drivers available	4, XYZ E0	Yes	WiFi	Includes Display	Great all in one solution, if you dont mind Closed Source Hard- / Software
GEN 7	http://reprap.org/wiki/Generation_7_Electronics	32-Bit	LPC1114 ARM	Open Source	Propr. Firmware, Open Source	Any driver with Polulu Socket	4, XYZ E0	No Information	No	DYI board	Community supported, you need soldering skills


RAMPS / Arduino	http://reprap.org/wiki/RAMPS_1.4	8-Bit	ATmega 2560	Open Source	Marlin, Repetier Open Source	Any driver with Polulu Socket	5. XYZ2 E0 E1	Limited	No	Cheapest and very common solution	Still a very nice working solution. limited processor power though
Rumba Board	http://www.reprap.org/wiki/RUMBA	8-Bit	ATmega 2560	Open Source	Marlin, Repetier Open Source	Any driver with Polulu Socket	6. XYZ E0 E1 E2	No Information	No		Nice all in one solution
MKS GEN	http://reprap.org/wiki/MKS_GEN	8-Bit	ATmega 2560	Closed Source	Marlin, Repetier Open Source	Any driver with Polulu Socket	5. XYZ2 E0 E1	No Information	No	All in one solution for RAMPS
MKS BASE	http://reprap.org/wiki/MKS_BASE_1.0	8-Bit	ATmega 2560	Closed Source	Marlin, Repetier Open Source	A4988 Fixed	5. XYZ E0 E1	No Information	No
GT2560	https://www.geeetech.com/wiki/index.php/GT2560	8-Bit	ATmega 2560	Open Source	Marlin, Repetier Open Source	Any driver with Polulu Socket	5. XYZ E0 E1	No Information	No	Geeetech all in one board.

Hypercube Evolution

リンク

作成案（決定）

アルミフレーム

手配リスト

ボツになったメモ

ボード種類
